Double above spindle cutting plate, feed speed is 0~1500mm/min

GMMA-100D Edge milling machine ferature:

The edge milling machine can be automatic travel

Have two upper spindle feed speed*2

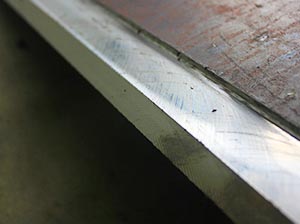

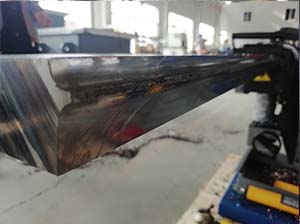

Can be processing u-type bevel, V-type bevel

GMMA-100D Edge milling machine technical parameters

Power Supply：AC 380V  50HZ

Total Power：6700W

Spindle Speed：500~1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：6~100mm

Clamp Width：≥100mm (Not processing edge)

Processing Length：≥400mm

Bevel Angle：0°~90°Adjustable

Single Bevel Width：0~30mm （Change according to material and angle）

Bevel Width：0~60mm（Change according to bevel angle）

Cutter Plate：2*φ63mm

Cutter Qty：2*6pcs

Worktable Height：810~870mm

Travel Space：1200*1200mm

Net Weight：430kg

Gross Weight：490kg

Package Size：950*1180*1430mm
