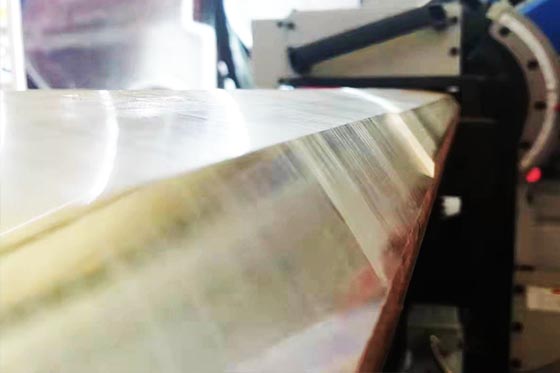

Double spindle toghter processing plate bevel, cold cutting, feed speed:0~1500mm/min
GMMA-100K Edge milling machine power data:
Power Supply:AC 380V 50HZ
Total Power:6480W
Cutting Power:2*3000W
Feed Motor:2*180W
GMMA-100K Edge milling machine technical parameters
Spindle Speed:500~1050r/min
Feed Speed:0~1500mm/min(According to bevel depth and material)
Clamp Thickness:6~100mm
Clamp Width:≥100mm (Not processing edge)
Processing Length:≥400mm
Single Bevel Width:0~20mm (Change according to material and angle)
Above Angle:0°~90° Adjustable
Under Angle:0°~-45°Adjustable
Above Bevel Width:0~60mm(Change according to bevel angle)
Under Bevel Width:0~45mm(Change according to bevel angle)
Cutter Plate:2*φ63mm
Cutter Qty:2*6pcs
Worktable Height:810~870mm
Travel Space:800*800mm
Net Weight:395kg
Gross Weight:460kg
Package Size:950*1180*1430mm
