Max. bevel: 110mm, Bevel angle is 0 ~ 90 degrees, there is no step adjustment, and the feed speed is 0 ~ 1500mm / min

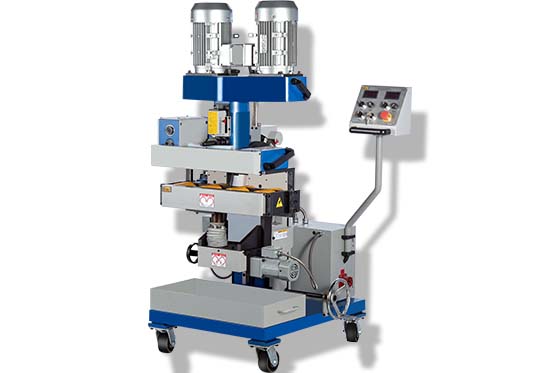

GMMA-100L Edge milling machine technical parameters

Power Supply：AC 380V  50HZ

Total Power：6520W

Spindle Speed：500~1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：8~100mm

Clamp Width：≥100mm (Not processing edge)

Processing Length：＞300mm

Bevel Angle：0°~90°Adjustable

Single Bevel Width：0~30mm（Change according to material and angle）

Bevel Width：0~100mm（Change according to bevel angle）

Cutter Plate：φ100 mm

Cutter Qty：7/9pcs

Worktable Height：810~870mm

Travel Space：1200*1200mm

Net Weight：420kg

Gross Weight：480kg

Package Size：950*1180*1430mm
