大型板材掛渣去除機，板材寬度1200mm

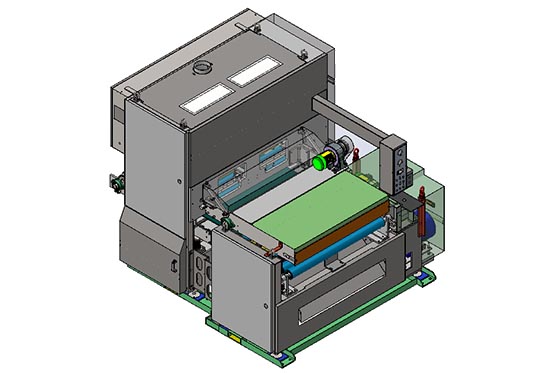

GDM-3120D自動掛渣去除機產品簡介：

  這是一款大型號的掛渣去除機，加工能力較GDM-265D型掛渣機翻了一倍，允許更寬的工件進入，加工速度在2.0~4.0m/min，客戶可以選配除顫器。

GDM-3120D自動掛渣去除機產品應用領域：

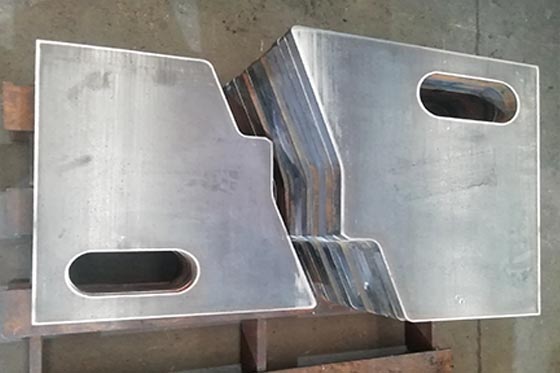

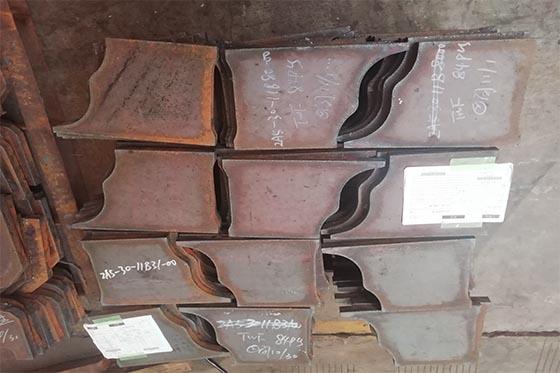

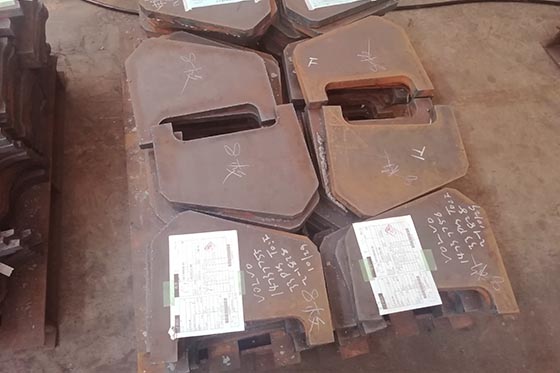

   產品主要針對火焰切割的掛渣去除，并非熔渣；激光和等離子細小掛渣也可以去除，切割缺陷的掛渣是無法去除的。主要用于鋼結構、工程機械、礦山機械領域。

GDM-3120D掛渣去除機動力參數：

供電電源................................................................................................AC 200V/380V/415V  50/60HZ（可定制其他電壓）
總  功  率................................................................................................26.5KW
磨削電機功率.........................................................................................11KW4P*2
進料電機功率（上面用）.......................................................................1.5KWGM*1
進料電機功率（下面用）........................................................................0.75KWGM*1
自動升降功率..........................................................................................0.75KWGM*1
氣源（壓縮空氣）...................................................................................5kg/cm2.40Ne/min
風機風量..................................................................................................70m3/min

GDM-3120D掛渣去除機技術參數：
加工板寬.....................................................................................................1200mm
加工板厚.....................................................................................................60（100）mm
****小加工長度，上下面加工........................................................................200mm
                        上面加工.............................................................................100~200mm
臺面高度.....................................................................................................950mm
臺面尺寸.....................................................................................................3400*3520mm（設備工作臺總長度）
去掛渣速度..................................................................................................2~4m/min
磨削行進速度（上面）................................................................................600m/min
磨削行進速度（下面）................................................................................450m/min
一次進給完成..............................................................................................上、下兩面
整機凈重......................................................................................................4500Kg
