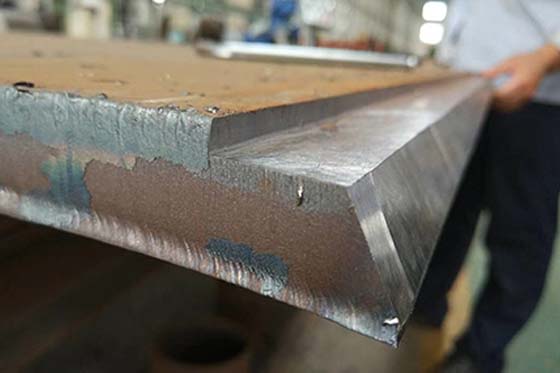

Bevel angle:0 to 90degree adjustable, bevel width: 45mm， feed speed:0~1500mm/min

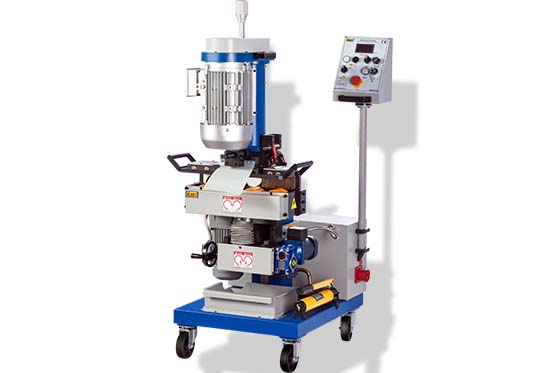

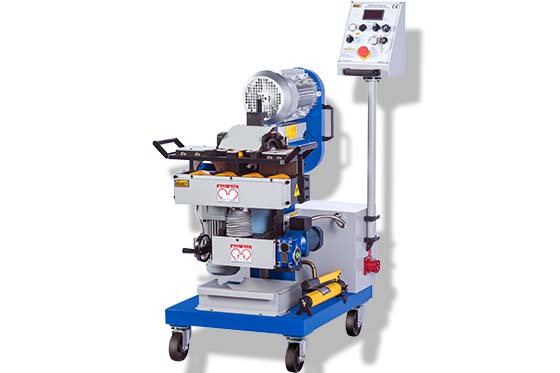

GMMA-60L Plate Edge milling machine technical parameters:

Power Supply：AC 380V  50HZ

Total Power：4520W

Spindle Speed：1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：6~60mm

Clamp Width：＞80mm (Not processing edge)

Processing Length：＞300mm

Bevel Angle：0°~90°Adjustable

Single Bevel Width：0~20mm（According to bevel angle and material）

Bevel Width：0~60mm（Change according to bevel angle）

Cutter Plate：φ63mm

Cutter Qty：6pcs

Worktable Height：700~760mm

Travel Space：800*800mm

Net Weight：225kg

Gross Weight：260kg

Package Size：950*700*1230mm
