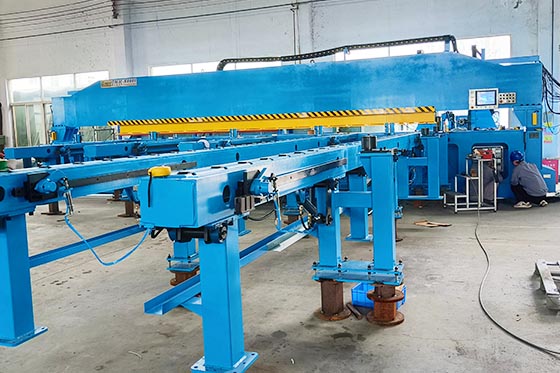

CNC EDGE MILLING MAHCINE processing plate length 9000mm,

GMM-X9000 CNC edge milling machine technical data:

Power supply: AC380V 5HZ/ 415V60HZ/ 220V 50HZ

Total power: ~35KW

Plate length: 9000mm

Plate thickness: 4~80mm

Upper bevel angle: 0~85 degree

Lower bevel angle: 0~60 degree

Bevel width: 0~100mm

GMM-X9000 CNC edge milling machine feature:

Touchscreen operation does not require user G-code programming

This CNC edge milling machine automatically performs layered cutting without requiring any skills from the user

Large range of bevel angle adjustment

One key operation, no need for tedious operations

This CNC edge milling machine with automatic feeding rack and plate supplier function

This CNC edge milling machine with iron chip fences and safety doors, the rear system automatically shuts down upon entering
