Plate bevelling machine, protable plate bevelling machine, self-prolled bevelling machine

GBM-16D  Plate beveling machine, protable plate beveling machine, self-prolled beveling machine technical data：

Power supply: AC 380V  50HZ

Total power: 1500W

Motor speed: 1450r/min

Feed speed: 1.2~2.0m/min

Clamp thickness: 9~40mm

Procssing plate width: ＞115mm

Processing plate lenght: ＞100mm

Bevel angle：25°~45°Adjustable

One single feed width: 0~16mm

Bevel with: 0~28mm ( Acc to bevel angle to change)

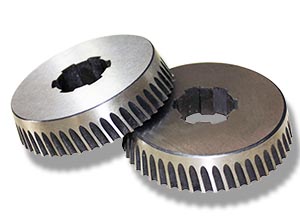

Cuuter plate: φ115 mm

Cutter qty: 1pcs

Wotrktable high:700mm

Area: 800*800mm

Net weight: 212kg
